How To Use Diamond Wire Saw​

Operating a diamond wire saw effectively requires balancing aggressive cutting power and precise mechanical control. You must master this balance to avoid costly equipment failure or severe safety hazards. Precision protects both your team and your heavy machinery.

In industrial applications ranging from reinforced concrete demolition to granite quarrying, improper operation carries steep consequences. It often leads to premature wire snapping, excessive consumable costs, and unacceptable project delays. Operators face mounting pressure to get complex cuts right on the first attempt without compromising structural integrity.

This guide details the standard operational procedures, critical cooling parameters, and troubleshooting frameworks. You will learn the exact methods required to maximize cutting efficiency and prolong equipment lifespan. These proven strategies keep industrial cutting projects safe, profitable, and on schedule.

Key Takeaways

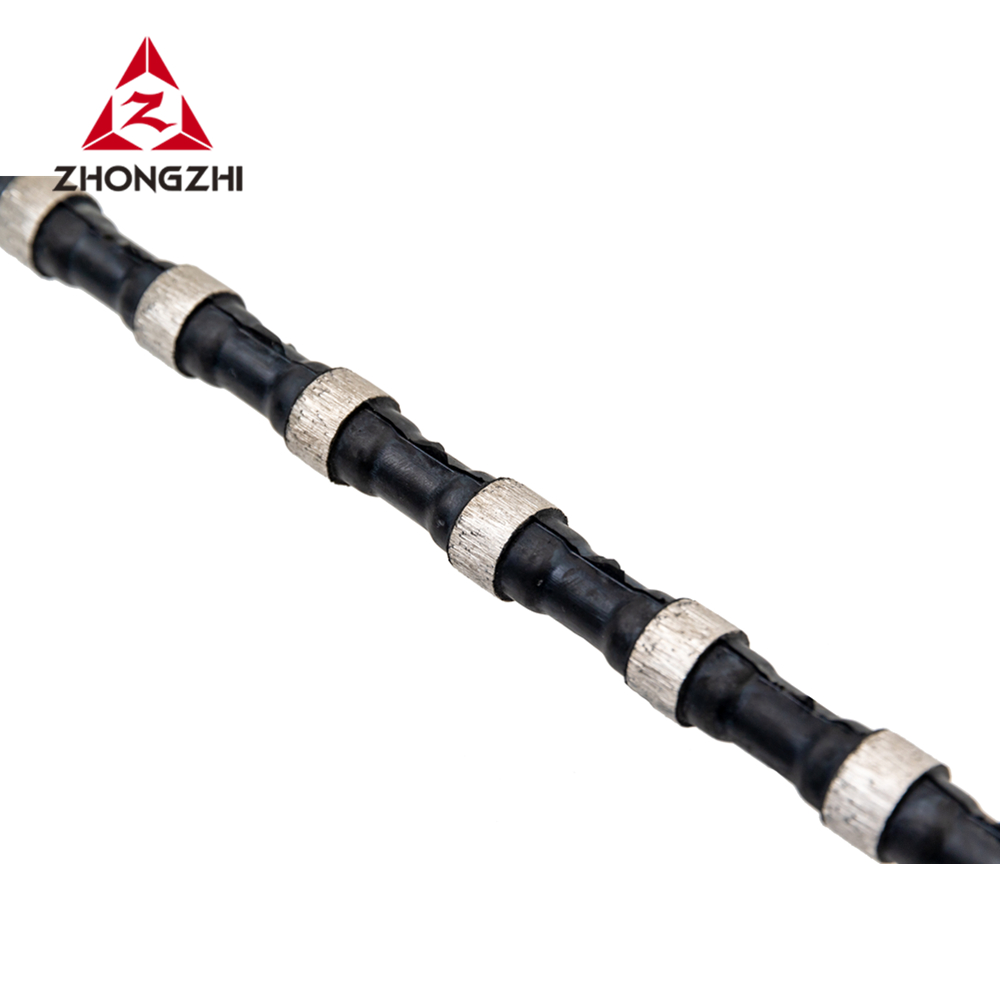

• Proper Tensioning is Critical: The longevity of a Diamond Tools Wire Saw depends heavily on exact pulley alignment and maintaining manufacturer-specified tension.

• Cooling Dictates Performance: Continuous, adequate water flow is non-negotiable to prevent diamond bead glazing and wire core degradation.

• Progressive Feed Rates: Starting cuts at full speed causes immediate binding; operators must scale RPM and feed rates incrementally.

• Safety First: Standing outside the immediate wire trajectory and utilizing physical guards are mandatory compliance standards to mitigate the risk of a snapped wire.

1. Pre-Operation Setup and Equipment Inspection

You must establish a highly stable, perfectly aligned cutting path before engaging any power. This preparation prevents lateral stress on the internal steel core. Proper setup dictates the entire success of your cutting operation.

Begin by securing the track and drive wheel mounting. You must anchor the main drive unit securely to solid concrete or steel. Any vibration or shifting during the cut causes erratic tool behavior. Loose mounts generate rhythmic bouncing. This bouncing strips the abrasive beads and fractures the inner steel cable. Always verify your anchor torque before proceeding.

Next, focus on your pulley alignment. You need to route the diamond wire saw precisely through the guide pulleys. Make the cutting path as straight as physically possible. You want to minimize acute angles. Sharp angles put massive bending fatigue on the steel core. When you force a thick cable around a tight corner under high tension, it will snap prematurely.

Crimping and tensioning require precise execution. Inspect the hydraulic or mechanical crimp connecting your loop. Apply initial tension based entirely on the specific material density. You need higher tension for reinforced concrete. You need lower, more forgiving tension for soft masonry.

Common Pre-Operation Mistakes to Avoid:

• Using worn pulleys that allow the cable to slip off track.

• Failing to sweep the cutting path for loose debris before tensioning.

• Relying on manual crimpers instead of hydraulic presses.

Tip: Always use a specialized hydraulic crimping tool rather than manual crimpers to ensure the wire joint can withstand industrial load tension without separating.

2. Core Operating Procedures: Executing the Cut

You must carefully manage the relationship between linear wire speed and the drive wheel feed rate. This balance optimizes your daily cutting efficiency. Operators control the pace to let the diamonds do the actual work.

Start initiating the cut at a very low RPM. You want the abrasive beads to gently grind a shallow starting groove in the material. Do this before you apply full system tension. This shallow groove acts as a physical guide track. It prevents the cable from wandering across the surface. Let the machine run slowly for several minutes to establish this track.

Once the cable seats properly, you can begin scaling up the feed rate. Incrementally increase the linear speed. Watch the drive motor's amperage closely. Sudden electrical spikes indicate a major problem. Amperage spikes mean the tool is binding inside the kerf. It also suggests your feed rate is too aggressive for the material.

You must adjust constantly to material resistance. When you transition from plain concrete into heavy steel rebar, adjust your parameters immediately. Momentarily reduce the feed rate. You must allow the diamonds to cut through the denser steel slowly. If you push too hard here, you will strip the abrasive matrix right off the beads.

Step-by-Step Cut Initiation Sequence:

1. Engage water cooling systems at maximum flow.

2. Start the drive motor at the lowest possible RPM setting.

3. Apply minimal tension until the beads score the surface.

4. Gradually increase RPM while monitoring drive amperage.

5. Lock in the feed rate only when amperage stabilizes.

Note: Operating at maximum speed immediately upon startup is the leading cause of diamond bead stripping and immediate wire failure.

3. Managing the Cooling and Slurry System

You must prevent thermal damage to your tool while simultaneously clearing cutting debris. This combination maintains vital friction efficiency. Without proper cooling, your project will fail rapidly.

Strict water volume requirements dictate operational success. You must position water jets directly at the exact point where the cable enters the cut. Water acts as a crucial coolant for the synthetic diamonds. It absorbs the extreme friction heat generated against concrete. Water also serves as a physical transport mechanism. It carries the dusty slurry out of the kerf.

Train your operators to monitor slurry color continuously. Watch the runoff water carefully. A thick, paste-like slurry indicates severely insufficient water flow. This heavy paste acts like glue. It will quickly cause the cable to get stuck deep inside the structure. Clear, slightly cloudy water means your flush rate is perfect. Dark grey or muddy runoff means you are grinding too fast or flushing too little.

You must understand the dry-cutting exceptions. Standard wet-rated cables fail instantly if run dry. Dry-cutting triggers immediate core overheating. The intense friction melts the rubber or plastic matrix binding the beads. Once this protective matrix melts, the beads slide freely along the steel core. The cable then breaks apart in seconds.

Slurry Diagnostic Chart:

4. Troubleshooting Common Diamond Wire Saw Issues

Equipment downtime ruins project schedules. You must implement rapid diagnostic frameworks to minimize operational delays. Quick problem identification saves thousands of dollars in wasted consumables and idle labor.

Wire snapping or joint failure happens frequently under heavy loads. Excessive tension usually causes this exact issue. Acute pulley angles also create severe stress points. Improper crimping techniques leave joints weak. When a break occurs, re-evaluate your pulley placement immediately. You need to soften those harsh angles. Check for worn drive wheel liners too. Worn rubber liners cause slippage, which jerks the cable violently.

Another major issue involves the tool getting stuck in the cut. We call this pinching. It happens because the concrete structure shifts as you cut it. The massive weight clamps down tightly on the cable. Inadequate slurry removal also causes pinching. To solve this, you must insert steel or hardwood wedges directly into the cut behind the wire path. Drive these wedges deep to keep the kerf wide open.

Uneven diamond bead wear, or tapering, destroys cutting efficiency. This tapering means the cable is not rotating along its axis during operation. One side of the bead grinds flat while the other side stays untouched. To fix this, you must introduce the correct amount of axial twists before crimping the loop closed. Usually, you apply 1.5 to 2 twists per meter. This specific twisting action forces the cable to roll continuously, ensuring 360-degree bead wear.

Best Practices for Diagnostics:

• Inspect the drive wheel liners for deep grooving before every shift.

• Tap wedges into the kerf every few feet to prevent settling.

• Measure bead diameters weekly to catch uneven wear early.

Tip: Keep a detailed log of when and where wire breaks occur; repeated breaks at the crimp indicate a tooling or operator training issue, while random breaks suggest material anomalies or excessive feed rates.

5. Safety Protocols and Compliance Standards

Industrial cutting environments pose severe physical hazards. You must outline and enforce mandatory safety frameworks rigidly. A snapped cable carries immense kinetic energy and requires serious containment strategies.

You must establish strict exclusion zones on every job site. Create a mandatory "no-go" zone directly in line with the rotational path. If a break occurs under high tension, the cable acts as a high-velocity whip. This whip can cause catastrophic injuries or fatalities. No personnel should ever stand in the direct planar trajectory of the running machine.

Guarding and containment systems save lives. You must install physical Lexan polycarbonate or thick steel guards over all guide pulleys. Place substantial guards over the main drive wheel. These physical barriers catch a broken whip before it travels across the site. Never operate the machine if these guards are cracked, missing, or improperly mounted.

Emergency stops play a critical role in site safety. You must ensure the remote control operator station sits safely away from the active cut. The operator needs a clear view but must remain outside the danger zone. You must test the E-stop functionality prior to every single operation. A faulty E-stop turns a minor jam into a major equipment loss.

Daily Safety Checklist:

1. Verify all exclusion zone barriers and warning signs are active.

2. Inspect polycarbonate guards for hairline stress fractures.

3. Test the remote E-stop button while the motor runs idle.

4. Confirm all operators wear impact-resistant face shields.

Conclusion

Successful cutting operations rely entirely on meticulous setup, disciplined feed rate management, and uncompromising cooling protocols. You must balance machine power with the physical limitations of the abrasive beads and steel core. Taking shortcuts during pulley alignment or tensioning invariably leads to equipment failure.

We highly recommend establishing a standardized operating checklist prior to every cut. Your operators should verify pulley alignment, system tension, water flow rates, and safety guards before powering up the drive unit. Documentation and procedural discipline keep your projects running smoothly.

If you are evaluating new equipment, prioritize machinery featuring automated tensioning systems. These advanced systems eliminate human error during complex cuts. Furthermore, always select high-quality Diamond Tools Wire Saw consumables matched specifically to your target material density. Pairing the right bond matrix with smart operational tactics guarantees maximum efficiency.

FAQ

Q: How many twists should I put in a diamond wire before crimping?

A: Typically, 1.5 to 2 full twists per meter of wire. This ensures the wire rotates during operation, promoting even wear across all diamond beads. Without these twists, the beads will grind flat on one side, ruining the tool prematurely.

Q: Why is my diamond wire glazing over and stopping cutting?

A: Glazing occurs when the wire runs through abrasive material with insufficient pressure, or when cutting dense materials at the wrong RPM. You may need to briefly increase tension or expose the wire to an abrasive dressing stone to open up new diamonds.

Q: Can a diamond wire saw cut through solid steel?

A: Yes, but it requires a specialized wire design (often vacuum-brazed diamonds) and significantly slower feed rates compared to reinforced concrete. You must manage heat carefully and use ample water to prevent the steel from gumming up the abrasive matrix.
