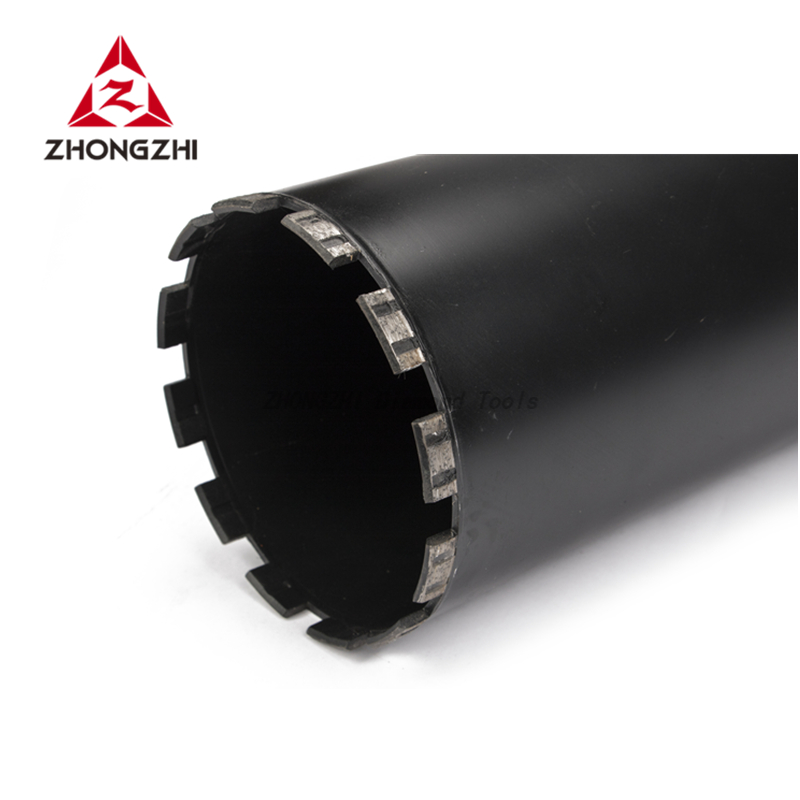

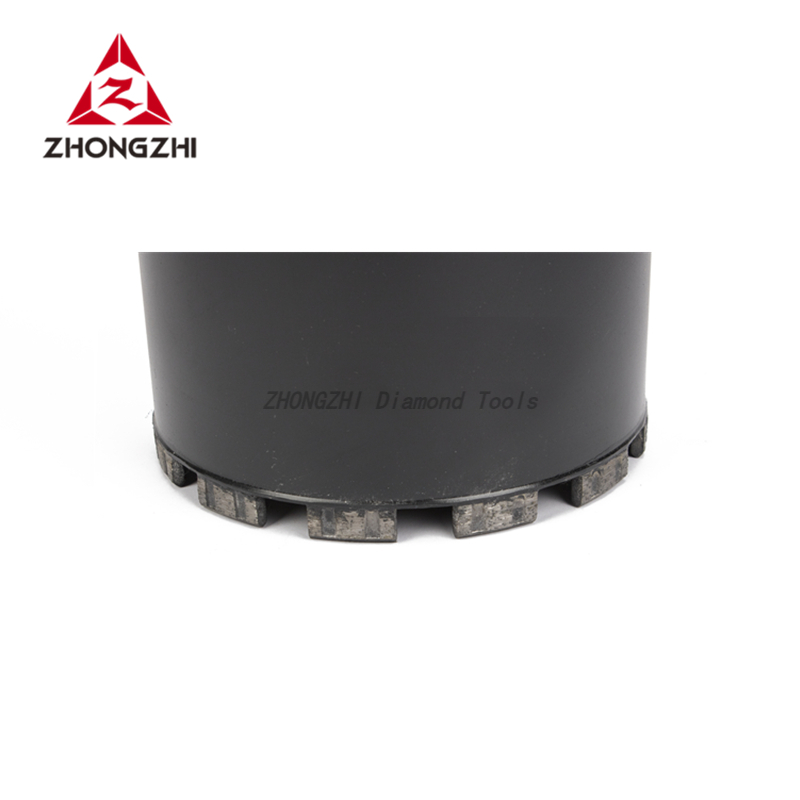

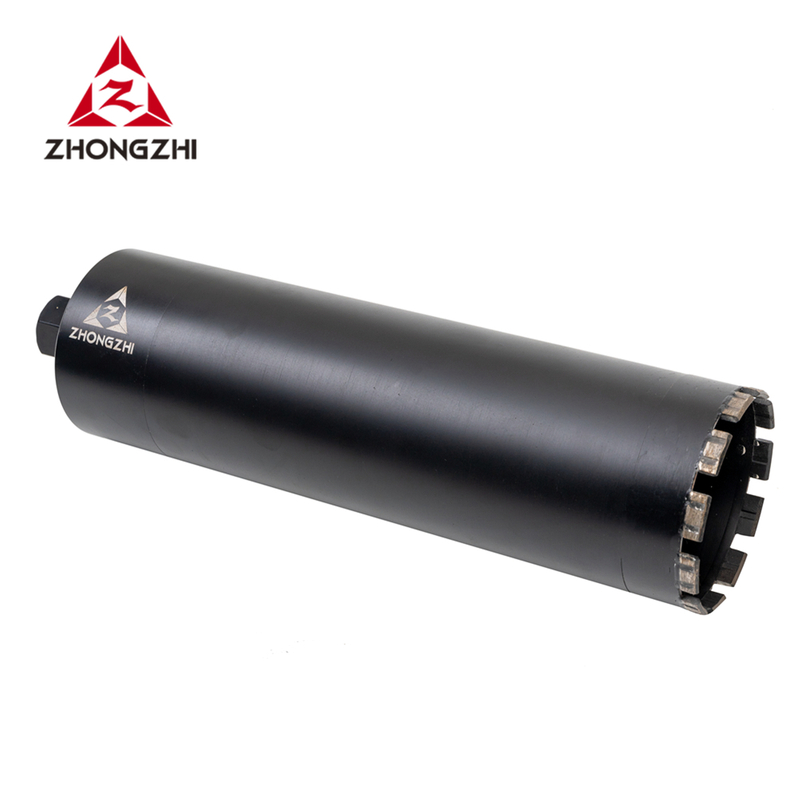

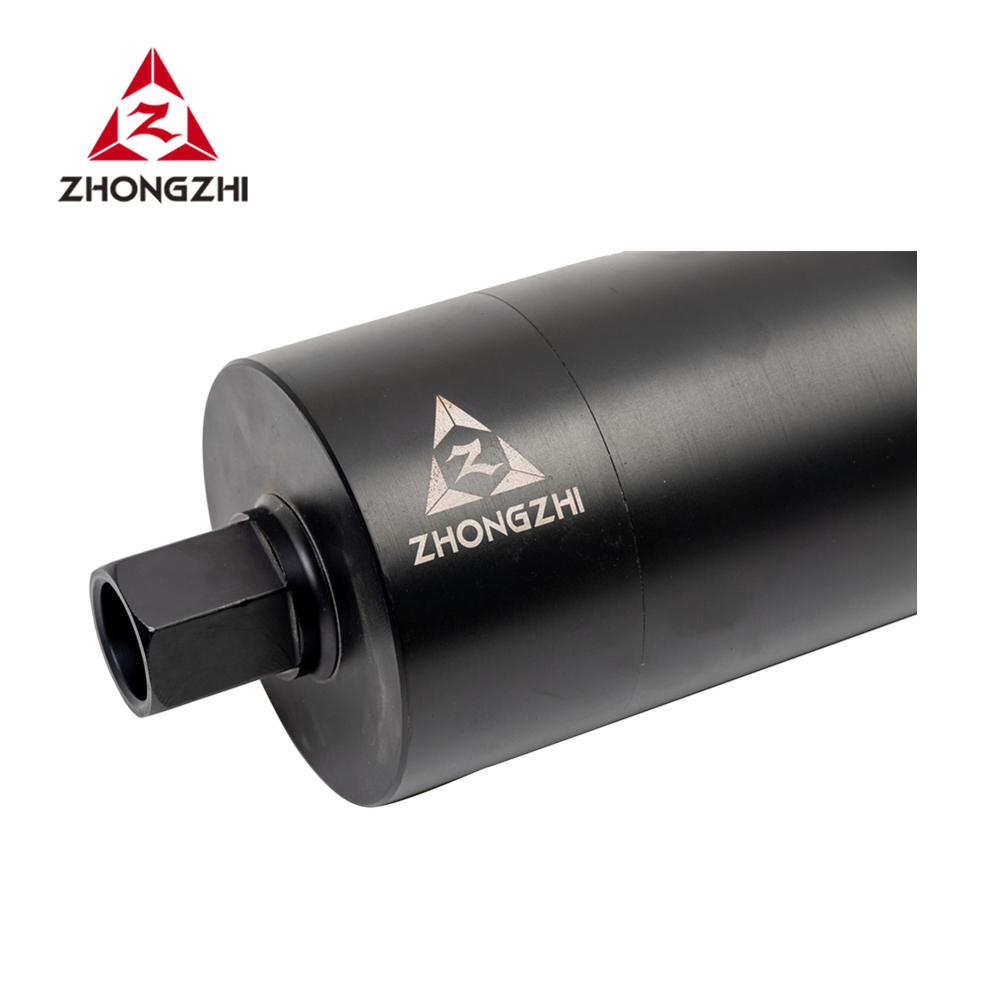

Diamond Core Bits Reinforeced Concrete

Designed for drilling cured concrete, reinforced concrete, concrete brick and block. Wet drilling by handheld core drill or stand core drill.Diamond core drill bit can drill holes precisely at high quality.They are used for drilling kinds of stone, which is specialized in processing small diameter holes and equipped on manual drillers.
Availability:
Quantity:
Diamond Core Bits Reinforeced Concrete
Diamond Core Bits Reinforeced Concrete
Diamond Core Bits Reinforeced Concrete
Diamond Core Bits Reinforeced Concrete
Diamond Core Bits Reinforeced Concrete
  • ZHONGZHI

Product description:


Diameter

(mm)

Joint

Segment Dimension

Segment Number

Effective Length

Overall Length

Optional Segments

D16

1-1/4UNC

3*10

1

400

475

Shallow Slot Crown Segment、

Normal Segment、

Sharp Corners Segment、

Groove Turbo Segment、

Sharp Corners Groove Turbo segment

D18

3*10

1

400

475

D20

3*10

1

400

475

D24

15*3*10

3

400

475

D25

15*3*10

3

400

475

D28

15*3*10

3

400

475

D32

16*3*10

4

400

475

D36

16*3*10

4

400

475

D38

16*3*10

5

400

475

D40

16*3*10

5

400

475

D42


16*3*10

5

400

475

D47


24*3.5*10

4

400

475

D51


24*3.5*10

5

400

475

D63


24*3.5*10

6

400

475

D68


24*3.5*10

6

400

475

D78


24*3.5*10

7

400

475

D82


24*3.5*10

7

400

475

D92


24*3.5*10

8

400

475

D112


24*4.0*10

9

400

475

D122


24*4.0*10

10

400

475

D127


24*4.0*10

11

400

475

D132


24*4.0*10

11

400

475

D142


24*4.0*10

12

400

475

D152


24*4.5*10

12

400

475

D162


24*4.5*10

12

400

475

D172


24*4.5*10

12

400

475

D182


24*4.5*10

13

400

475

D202


24*4.5*10

15

400

475

D212


24*4.5*10

16

400

475

D225


24*4.5*10

16

400

475

D250


24*4.5*10

16

400

475

D300


24*4.5*10

17

400

475

D350


24*5*10

20

400

475
